150-1000MHz 2in 2out N Female Hybrid Coupler

Brand Name : Vinncom

Model Number : VN-HC2x2-15001-ON-xxx

Certification : ROHS ISO9000

Place of Origin : CHINA

MOQ : 5 pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 500pcs per day

Application : As same band combiner

Hight isolation : 20

LOW VSWR : 1.30

Connector : N Female

OEM/ODM : Acceptable

Color : Customized

PIM : 150

Contact Now

150-1000MHz 2in 2out N Female Hybrid Coupler

  • Wide band
  • Portable for installation
  • Good returen loss

Part Number

VN-HC2x2-15001-ON-xxx

Operating Frequency ( MHz )

150-1000

Impedance ( Ohm )

50

VSWR

1.3

Coupling (dB)

3.2

Insertion Loss (dB)

±1.0

Isolation (dB)

20

IM3 (dBc @ 2×43dBm)@

-150

Application

Indoor & Outdoor

Degree of Protection

IP65

Operating Temperature ( ℃ )

-40 ~ + 80

Interface

N Female

Handling Power (Watt, max)

300

Peak Power (Watt, max)

1200

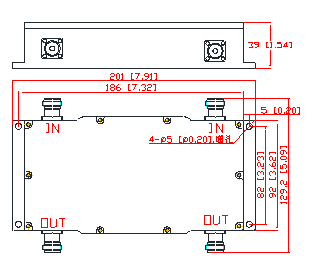

Dimension (mm)(L×W×H, excl connector)

201X98X39

Net Weight (g)

1515± 5%

Packing Dimensions (mm,L×W×H)

210X170X65

Packing Carton Size (mm,L×W×H)

530X440X80

ROHS Compliance

Yes

150-1000MHz 2in 2out N Female Hybrid Coupler150-1000MHz 2in 2out N Female Hybrid Coupler
